SIC Marking

SIC Marking Dot Peen
Dot Peen Marking

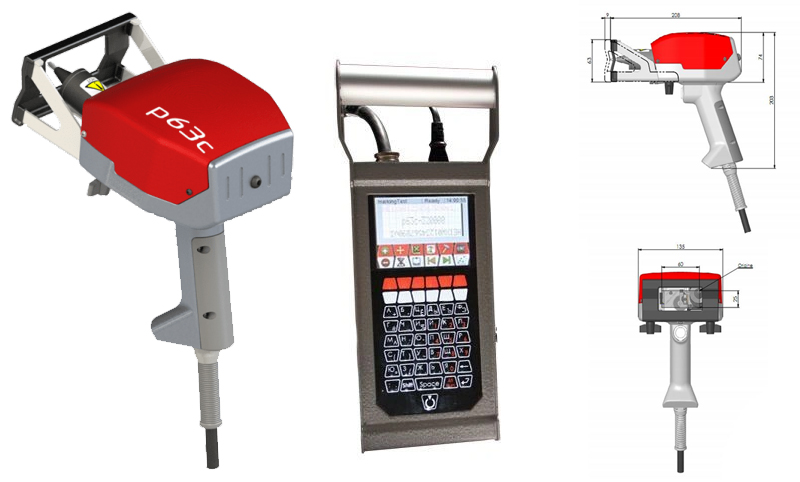

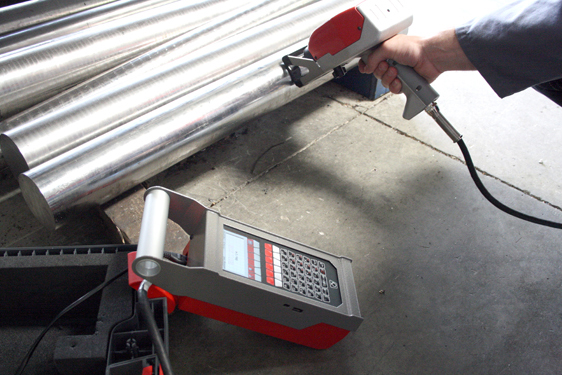

The e1 p63c portable engraving machine is particularly suited for use with heavy or oversized components. Thanks to its portable and compact design, it fits easily into difficult-to-access places. The ergonomic design of the handle and back plate creates a sturdy, well-balanced machine suitable for longterm operation as it reduces user fatigue

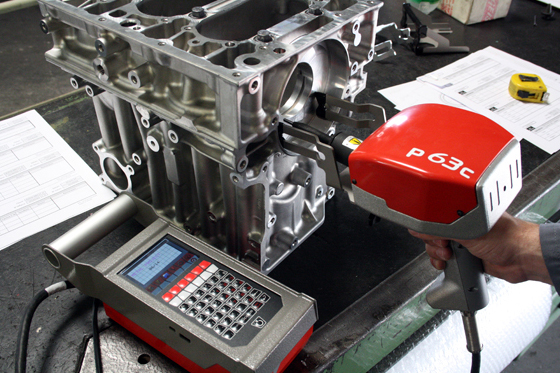

The p63c's dot peen marking machine is driven by electromagnetic technology which drives a tungsten carbide stylus into the surface material. Known for its high quality, deep marks, this dot peen marking machine is particularly suitable for creating data matrix codes. Capable of marking almost any material known to man, the precise, powerful stylus assembly alllows for deep, sharp marking, while the generous marking window (60 x 25 mm) allows for the marking of high, easily read characters

Mechanics Features :

  1. Marking Window: 60 x 25 mm
  2. Dimensions: 215 x 135 x 203 mm
  3. Weight: 2.6 kg
  4. Robotic Cable: 3m
  5. Stylus: Carbide

Electronics Features :

SIC Marking's e1 Controller independently operates and manages this marking machine, meaning no PC is required for operation. Initial setup can be done from a PC using the e1v1 software, while the USB port allows file transfer and marking software updates.

The e1 was ruggedly designed for industrial applications. It contains no openings or ventilation components providing optimal protection of interior electronic components. Thanks to its large aluminum handle, the grip is more comfortable than previous designs. The HD color screen features an integrated graphic display, making it easy to navigate. Using the protected membrane keyboard, programming is simple: the e1 allows for the direct change of settings and marking designs via manual input, or pictogram colors. The controller only weighs 2kg. Coupled with its marking unit, it offers perfect balance for increased mobility and maneuverability.

  1. Dimensions: 301 x 121 x 87 mm
  2. Weight: 2 kg
  3. HD Color Screen: 95 x 54 mm
  4. Keyboard: Integrated
  5. Power: 100W
  6. Supply: 100 to 240 VAC, 50/60 Hz

Steering Software :

The e1 integrated controller software is used to program all parameters directly through the keyboard (autonomous operation). A Windows tool library also allows programming from a PC.

  1. Marking Files: Up to 20,000
  2. Memory: 100 Mb
  3. Variable: Alphanumerical, Serial, Date, Barcode, and Logos
  4. Marking Files: Upload/Download From a USB Key
  5. Fonts: Courier, 4 x 6, OCR-Bold, OCRA, and OCR
  6. Marking Type: Linear, Radial, Angular, Datamatrix, and Logo
  7. Speed: Up to 2.5 Characters per Second
  8. Character size: 1 mm (minimum)
  9. Impact Force: 1 - 9 Levels
  10. Depth: Up to 0.3 mm
  11. Resolution Between Dots: 0.05 mm
  12. Comm Port: USB and Jack

Option :

Extended maintenance kits contain most common replacement parts for repairs or preventive maintenance, extending machine life.

Benefits :

  1. Dot peen stylus assembly (if dot peen machine)
  2. Origin detector
  3. Stylus
  4. Spring mechanism
  5. A set of drive belts (depending machine type)
  6. Vaseline oil lubricant (to be ordered seperately)
