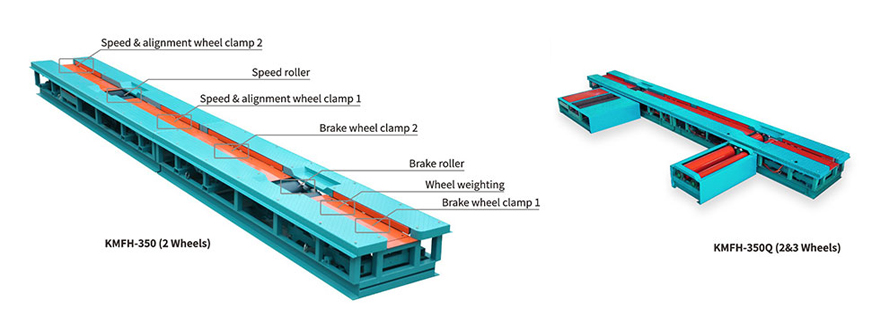

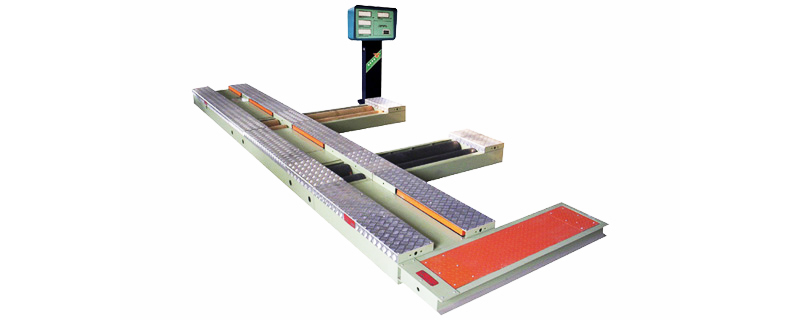

Motorcycle Test Bench

KMX-350 motorcycle inspection table, KMZZ-350 motorcycle axle load table, KMCS-350 motorcycle speed table, KMZD-350 motorcycle brake table, KMDW-350 motorcycle wheel aligner are used to detect axle loads below 350kg It is an advanced comprehensive testing equipment for the axle load, vehicle speed, braking and centerline deviation of the front and rear wheels of motorcycles. It is one of the main testing equipment for motorcycle safety testing lines and is widely used in traffic safety testing stations. and motorcycle maintenance industry;

Features :

Strictly follow GB/T13563 production, inspection standards meet GB7258, standard RS-232 serial communication interface, easy to network;
Equipped with an overall bent plate welding structure, the appearance is simple and beautiful, easy to install, and the roller adopts special knurling surface treatment process;
Equipped with a special photoelectric code to measure the speed, with high resolution and accurate measurement data;
The drum adopts aviation dynamic balancing technology, which allows high-speed operation, and is equipped with a reliable pneumatic lifting mechanism to facilitate vehicle entry and exit and improve detection efficiency;
Double safety insurance mechanism to prevent lifting misoperation and ensure test safety, and the speed of the test point is controlled by a wireless remote control;
Automatic & pneumatic clamps control process for smooth and safe operation
High adhesion coating paint for longer working life
High precision sensor and high roundness of roller ensures the exactitude of result
Standard RS-232 connection port
Combination of Wheel load, Brake, Speedometer and wheel alignment test facilities
