HY118 Series Sound Level Meter

The HY118 sound level meter is a hand-held instrument whose performance complies with the national standard GB/T 3785-2010 and the international standard IEC 61672:2013 "Sound Level Meter" for Class 1 Class X sound level meters. This sound level meter is the company's latest all-digital sound level meter. It is lightweight and portable.

The HY118 integral average sound level meter is an improved product of the HY108 sound level meter. It has a manual integral average function. It is mainly used to measure the time-weighted sound level, sound exposure level, cumulative percentage sound level, sound exposure and Noise evaluation amount of noise dose. The HY118 sound level meter uses the internal memory to save only one integral measurement result, and it will not be lost after power off. After each measurement, it will automatically cover the last result and save it, and the measurement result can also be printed on site.

Features

1. It is suitable for on-site measurement of environmental noise, machine noise, traffic noise and workplace noise, and also suitable for teaching demonstration in colleges and universities.
2. Battery-powered, compact and sturdy design, suitable for on-site use and portable.
3. With integral averaging function, easy to operate.
4. The measurement results are not stored (customizable storage mode), and the measurement results can be printed on site.
5. When used with an external computer, it can be used as a noise data collector.

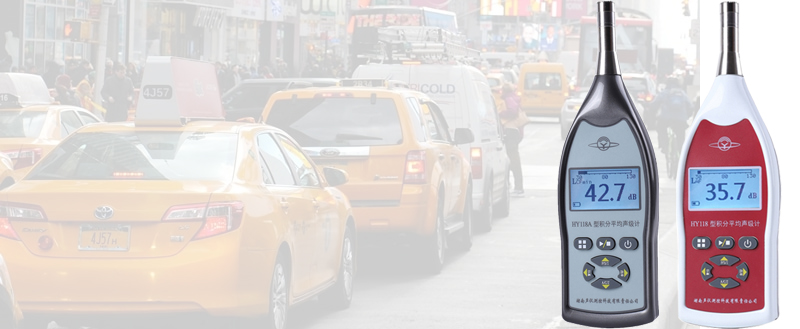

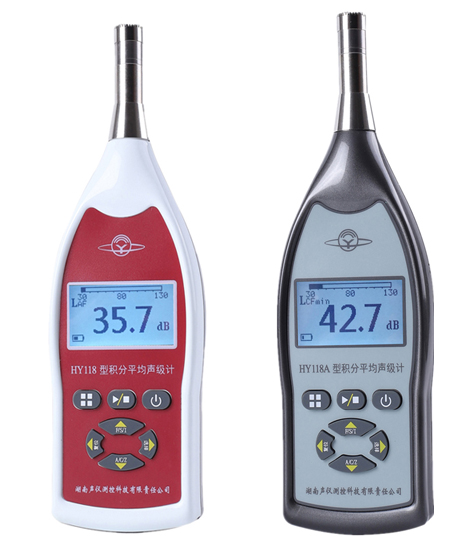

6. HY118 is a Class 1 sound level meter; HY118A is a Class 2 sound level meter.
7. Passed the type evaluation test, certificate number: 2019S126-43.

HY Model :

1. Sound Level HY 104
1. Sound Level HY 114
1. Sound Level HY 108
1. Sound Level HY 118
1. Sound Level HY 128
1. Sound Level YSD 135

1. Performance level: GB/T3785 and IEC61672 level 1.
2. Measured evaluation quantity: LP, Leq, LAE, L5, L10, L50, L90, L95, Lmax, Lmin, LCpeak, EA and other parameters.
3. Microphone: HY207 type 1 engineering measurement microphone, nominal diameter 12.7 mm, free-field frequency response. The nominal sound pressure sensitivity is 50 mV/Pa (the nominal sound pressure sensitivity level is -26 dB, and the reference value is 1 V).
4. Frequency range: 10 Hz ~ 20 kHz.
5. Frequency weighting: A weighting, C weighting, Z weighting.
6. Time weighting: F (fast response), S (slow response), I (impulse response).
7. Measuring range: A sound level: 30 dB ~ 130 dB; C sound level: 40 dB ~ 130 dB; Z sound level: 45 dB ~ 130 dB.
8. Integration time: Manually control the measurement duration within the range of 5 s ~ 99h 59min 59s.
9. Automatic calibration range: ±4.5dB (reference value is 50mV/Pa).
10. Display: 128x64 dot matrix liquid crystal display (LCD), resolution 0.1dB, with signs of overload, under-range, low battery voltage, etc.
11. Analog output: The output jack is a 3.5 mm dual-channel headphone jack with a minimum load impedance of 10kΩ.
1. DC logarithmic voltage: The output voltage is related to the logarithm of the measured sound pressure, and the unit sound pressure output voltage is 15 mV/dB.
2. AC linear voltage: The output voltage is linearly related to the measured sound pressure, and the output voltage corresponding to the upper boundary of the level range is 2.0V.
12. Digital output: The output connector is DB9 male (pin type), RS232 serial communication port, output ASCII code, modulation rate (baud rate) is 9600 Bd.
13. Power supply: 2 LR6 type (No. 5) batteries, which can work continuously for 27 hours under reference environmental conditions.
14. Dimensions: L x W x T; 210 x 68 x 31 mm.
15. Weight: 210 g.
16. Operating temperature range: -10°C~50°C.
